Smart and universal commercial charging station - EV Meter Pay

SKU

EVMBS004GEUY01

$1,800

Special Online Price!

A universal level-2 charging with two ports and a built payment terminal that accepts every major payment methods

Quantity:

Are you a Nayax customer? Login

Or create a new account:

First Name

Last Name

Telephone

State

Company Name

No company? Use your full name. Do not enter 'N/A' or similar.

Pick an Industry

Which products do you sell?

How many machines do you have?

Overview

Why EV Meter Pay ?

The EV Meter Pay is the ideal EV charging solution for commercial or public locations including shopping centers, hotels, workplaces, parking facilities and municipalities.

This universal charging station is equipped with a built-in card reader that accepts every major payment method including debit and credit cards, digital wallets, QR codes, prepaid, NFC and more. By providing EV Drivers with a quick and convenient way to pay, you won’t miss out on a single sale and your customers will enjoy a seamless charging experience. As a payment facilitator, EV Meter process all payments and ensures only pre-authorized transactions so that you could focus on growing your business.

Open Payment Suite

Accept any type of payment method including credits cards, digital wallets and more

OCPP Supported

Manage the charging station by using Energy Core or any other management platform

Universal

Compatible with all EVs and easily instaled in any electrical setting.

Secure

Tested to the highest degree of electrical safetyAward-winning support team available 24/7 in multiple languages and free training courses and webinars available at Nayax University.

Connected

OCPP 1.6 Supported

Weather Resistant

Designed to withstand any environmental conditions

Multi-Language

Operates in 15 languages
with unique voice
interaction features

Universal

Compatible with all EVs and easily instaled in any electrical setting.

Technical Details

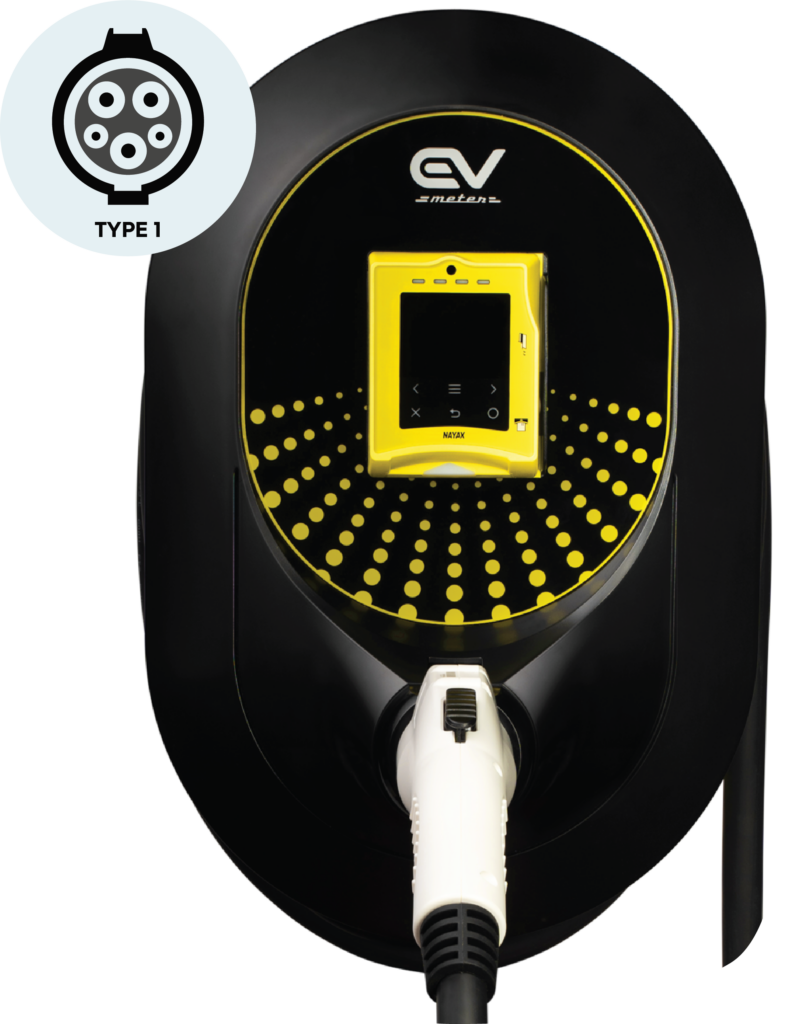

Type 1

AC Power Supply:

L1 + L2/N + PE
AC Input Voltage:

110-240 VAC +/- 10%, 50-60Hz
AC Output Voltage:

110-240 VAC +/- 10%, 50-60Hz
Maximum Input / Output Current:

50A max
Maximum Input / Output Power:

12kW
Interface Protocol:

OCPP 1.6 Supported
Available Connections:

Type1 Plug, 16.4ft cable
Server Communication:

Ethernet, 4G
Dimensions & Weight (WxHxD):

Cable 450x300x180 mm, 8kg
Standards & Certifications:

ROHS, REACH, FCC
Warranty:

3 years

Type2

AC Power Supply:

3P + N + PE
AC Input Voltage:

380-400 VAC, +/-10%, 50-60Hz
AC Output Voltage:

380-400 VAC, +/-10%, 50-60Hz
Maximum Input / Output Current:

3x32A
Maximum Input / Output Power:

22kW
Interface Protocol:

OCPP 1.6 Supported
Available Connections:

Type 2 socket or 5m cable with plug
Server Communication:

Ethernet, 4G
Dimensions & Weight (WxHxD):

Cable 450x300x180 mm, 8kg , Socket 480x300xs180 mm, 6kg
Standards & Certifications:

ROHS, REACH, CE Compliant
Warranty:

3 years
Maximum Input / Output Power:

2x22kW
.

FAQs

What payment methods does the EV Meter Pay accept?

The EV Meter Pay is integrated with Nayax’s robust payment solution that accepts swipe, contact and contactless credit cards, QR codes and digital wallets. This commercial charging solution provides EV drivers with maximum convenience when it comes time to pay. Additionally, EV Meter chargers also accept prepaid cards for closed-loop environments.

Does the EV Meter Pay charge all types of electric vehicles?

Yes, the EV Meter Pay is a universal level 2 charging station that is compatible with any plug-in electric vehicle.

Which languages does the EV Meter Pay operate in?

The built-in payment terminal on the EV Meter Pay operates in 30+ languages, including English, Spanish, French, Japanese, Dutch, German, Polish, Indonesian, Russian, Thai, Italian, Swedish Turkish, Czech and Hungarian. Payment term - Weekly \ Monthly

Are EV Meter chargers suitable for outdoor use? Can vehicles be charged when it’s raining or snowing?

EV Meter chargers can be installed both outdoors and indoors either on a pedestal or wall-mounted. With IP55 certification, these chargers are weather-resistant, waterproof and durable.

What does a level 2 charging station mean

A level 2 charging station charges faster than a household outlet, offering AC charging at a variety of charging speeds. EV Meter is a level 2 commercial charger, charging up to 22 kW.
